M series Wheeled Skid Steer Loader

M series Wheeled Skid Steer Loader

INTRODUCTION

M series Wheeled Skid Steer Loader is a new generation of small multi-function equipment integrating mechanics, electronics and hydraulics under the independent research and development of HAMAC, with every performance index having reached the international advanced level. The machine features compact structure, flexible movement, convenient operation, efficient working, powerful function and simple maintenance. It is especially applicable to urban infrastructure, roads or construction sites, workshop, warehouse, dock, ship deck, even inside of cabin and other places with narrow space and frequently-changed operational contents. By changing different devices, it realizes the shoveling and carrying, lifting, digging, drilling, crushing, scraping,scarification, snow blowing, deicing, road sweeping, pavement milling, and compaction operation.

inquiry! Leave a Message!

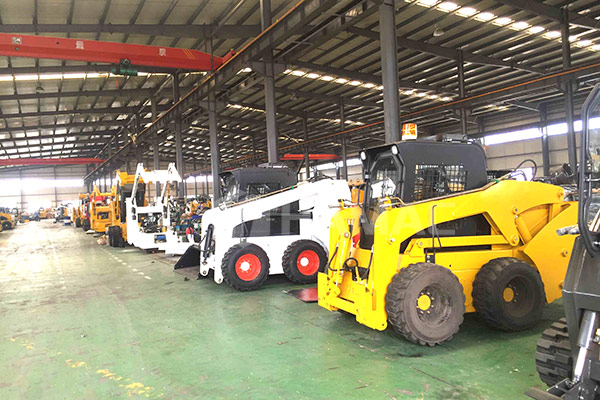

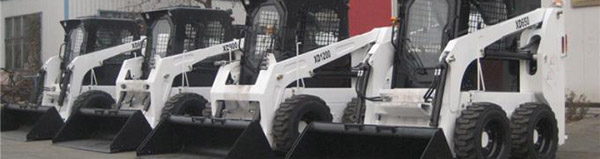

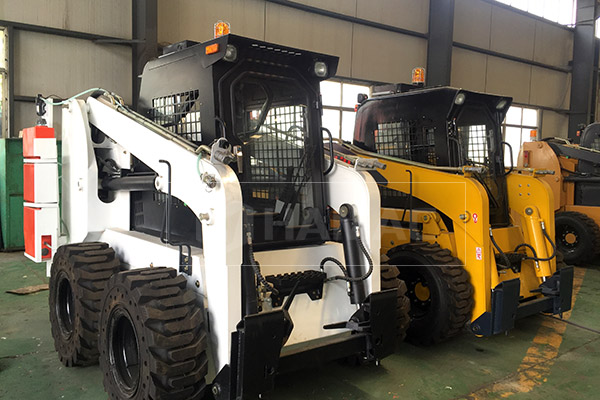

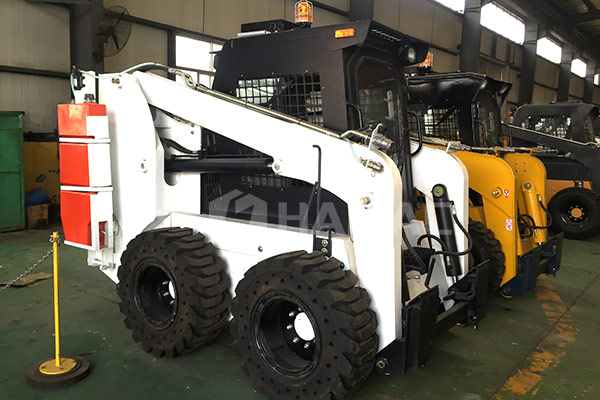

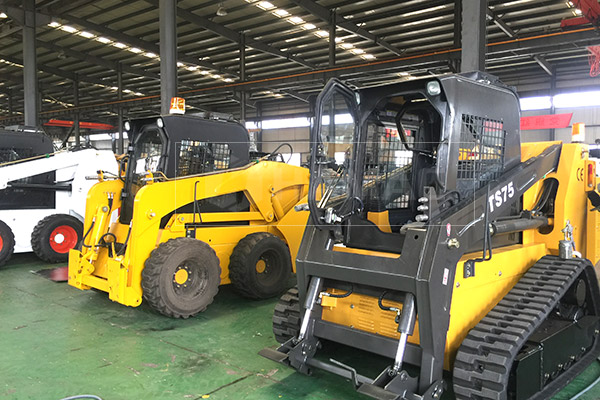

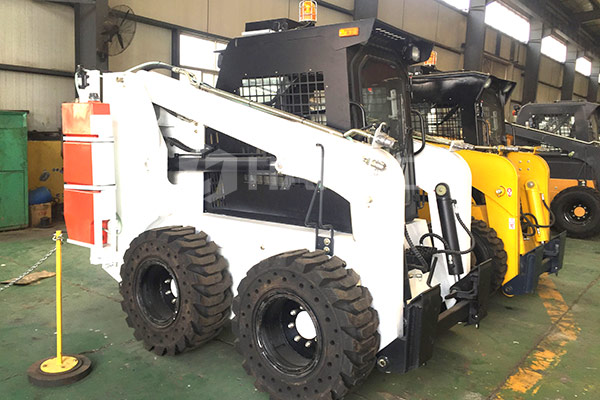

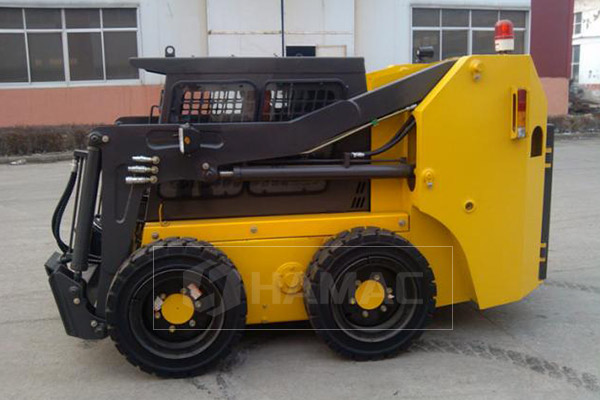

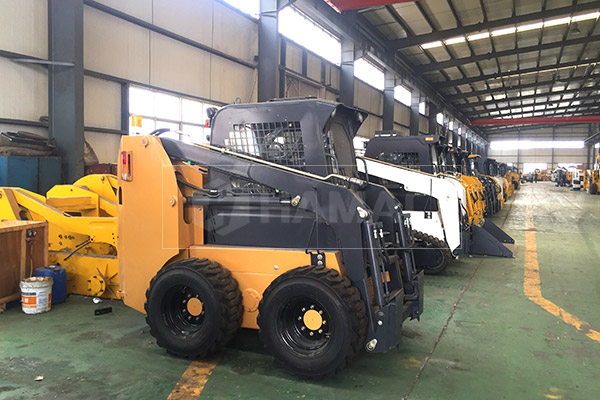

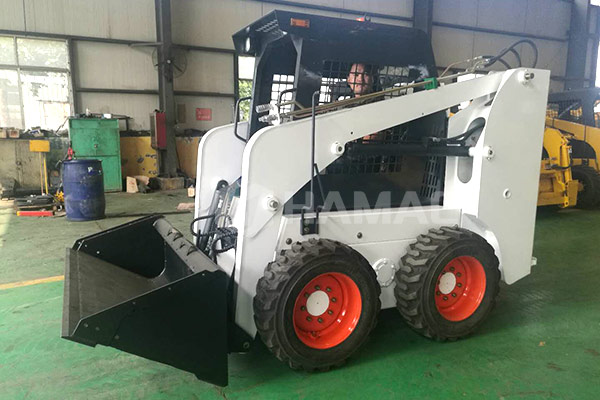

Detailed Photos

Specification

Model HC25M HC30M HC35M HC45M HC60M HC65M
Operating Load (kg) 300 450 500 700 850 950
Max. Speed (km/h) 9 10 10 12 12 12
Hydraulic flow (L/min) 37 50 60 62.5 75 75
Tire Model 23X8.5-15 27X8.5-15 8.5-15 10-16.5 12-16.5 12-16.5
Rated Power (kW) 18.4 22 29.5 37 45 55
Fuel tank Volume (L) 25 45 60 70 70 80
Self Weight (kg) 1500 2000 2300 2700 2800 3000
Bucket Volume (m³) 0.2 0.3 0.3 0.4 0.4 0.5

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Structure Data:

Main data/ Model HC25M HC30M HC35M HC45M HC60M HC65M
Overall operating height (mm) 3126 3430 3300 3980 4130 4130
Height to bucket hinge pin (mm) 2399 2633 2725 3080 3130 3130
height to top of cab (mm) 1813 1878 2000 2120 2170 2170
Height to bottom of level bucket(mm) 2399 2663 2558 2200 2250 2250
Overall length without bucket(mm) 1918 2262 2300 2710 2810 2810
overall length with bucket(mm) 2560 2929 2950 3490 3595 3595
Dumping angle at maximum height(° ) 36 43 40 40 40 40
Dumping height(mm) 1882 1971 2050 2380 2400 2400
Dumping reach(mm) 458 477 790 750 750 750
Rollback o bucket on ground(° ) 24 26 30 30 30 30
Rollback of bucket at full height(° ) 97 95 104 105 105 105
Wheelbase(mm) 722 818 897 991 991 1080
Ground clearance(mm) 148 167 140 185 210 210
Angle of departure(° ) 28 25 20 20 20 20
Front turning radius without bucket(mm) 971 1135 1098 1168 1198 1204
Front tuning radius(mm) 1557 1819 1760 1550 1550 1550
Rear tuning radius(mm) 1146 1339 1296 1350 1450 1450
Rear axle to bumper (mm) 738 967 964 1108 1208 1082
Tread width, centerline to centerline (mm) 747 967 1080 1450 1500 1500
Width (mm) 900 1182 1350 1580 1682 1682
Bucket width (mm) 914 1267 1400 1680 1700 1700
