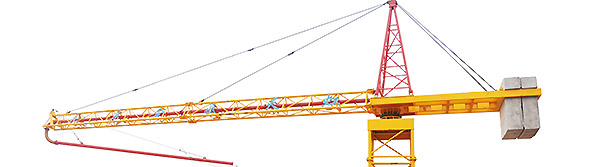

Manual Concrete Placing Boom

Manual Concrete Placing Boom

INTRODUCTION

HG series manual concrete placing boom of 12m, 15m and 18m, is a new product of our company produced for enlarging the range of concrete pouring and increasing the mechanization level of pumping operation. It connects to concrete delivery pump as corollary equipment, which enlarges the pumping range of concrete, effectively solves the hard problem of material distributing in wall pouring, and plays an important role in improving operating efficiency and reducing labor intensity. This distributing boom is reasonably designed, with stable and reliable structure, and its all direction and boom-type distributing structure makes it possible for the whole machine to be easy to operate manually and flexibly turned. The crane body is of appropriate height; and distributing direction can be easily changed by just pulling the rope, featuring character of high efficiency and energy saving, as well as being economical and practical, etc.

Hot Sale in stock: DHBT40 Diesel concrete pump - HBT60 Electric concrete pump - HBT15 Concrete mixing pump - DHBT15 Concrete mixing pump - 42m Concrete Boom Pump Truck - 17m Concrete Placing Boom  - HBT80 Electric concrete pump - Get quote or inquiry!

inquiry! Leave a Message!

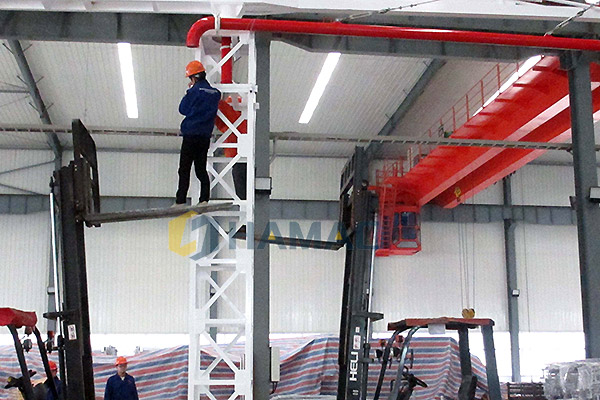

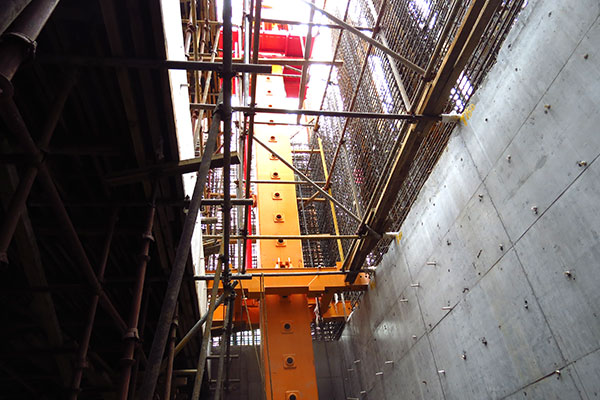

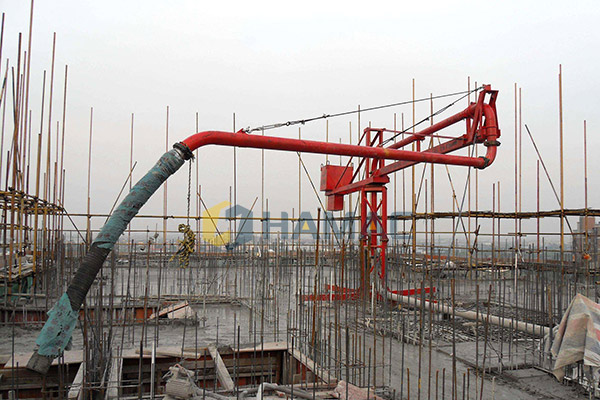

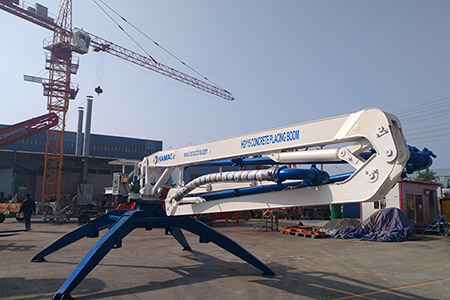

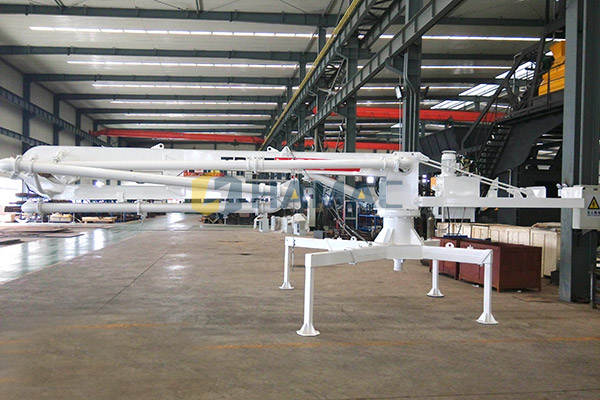

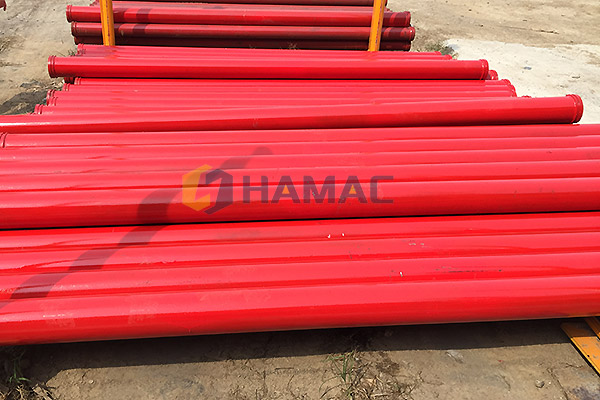

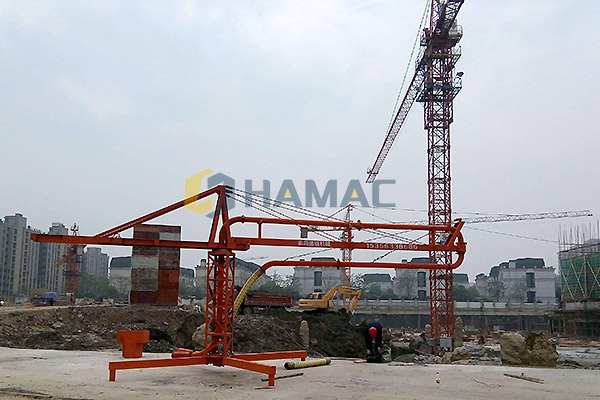

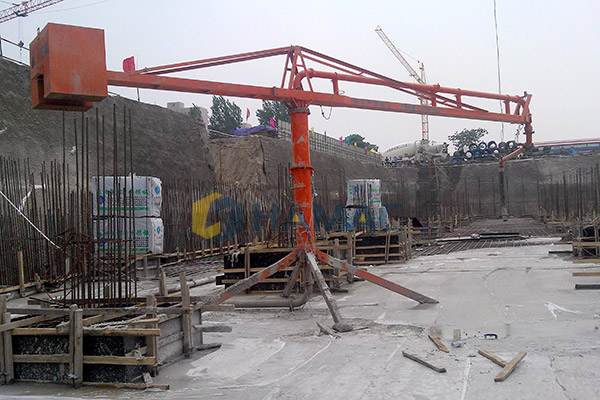

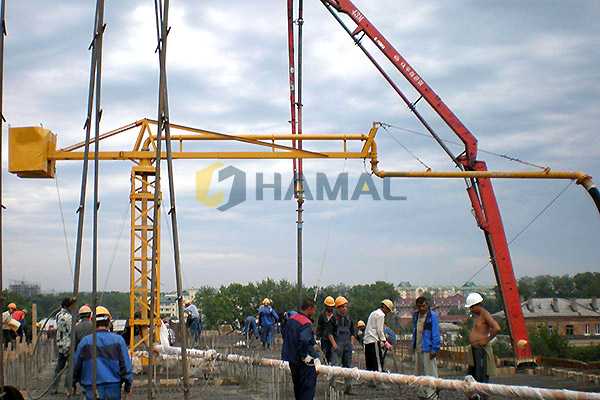

Detailed Photos

Specification

Item HG-12B HG-15B HG-18B Remark
Working radius (m) 12 15 18 Excluding hose
Hose length (m) 3 3 3
Tail Rotary radius (m) 3.1 4.4 4.4
Supporting legs span (m) 3.3×3.3 3.3×3.3 3.3×3.3
Rotation mode manual manual manual
Rotation angle (°) 0~360 0~360 0~360
Concrete pipe dia. (mm) Φ125 Φ125 Φ125
Overall height (mm) 6100 6100 6100
Stand column section (mm) 600×600 600×600 600×600
Overall weight (kg) 1400 1600 2500
Balance weight (kg) 1000 1200 1400
Rotation support Ma'anshan Ma'anshan Ma'anshan
Note: Our products are being updated constantly, all rights reserved by HAMAC.
