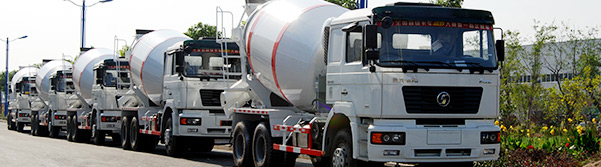

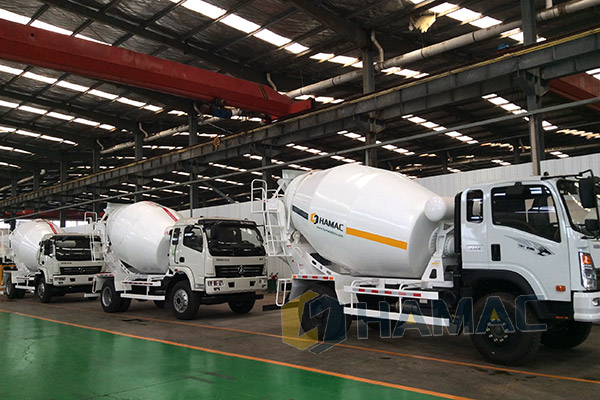

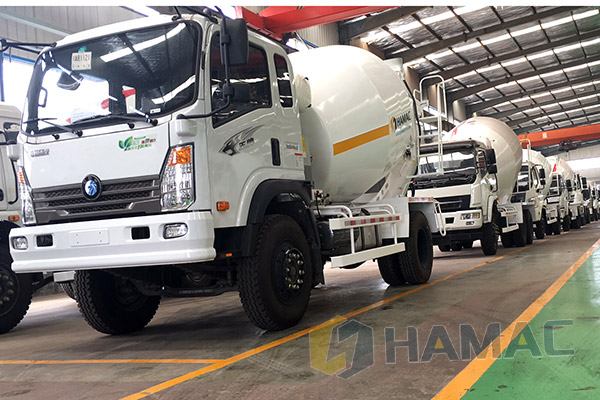

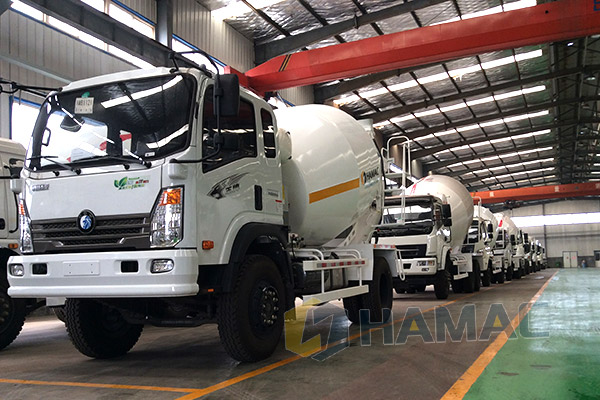

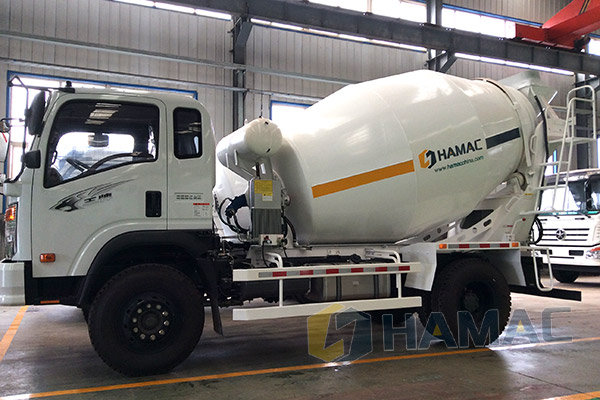

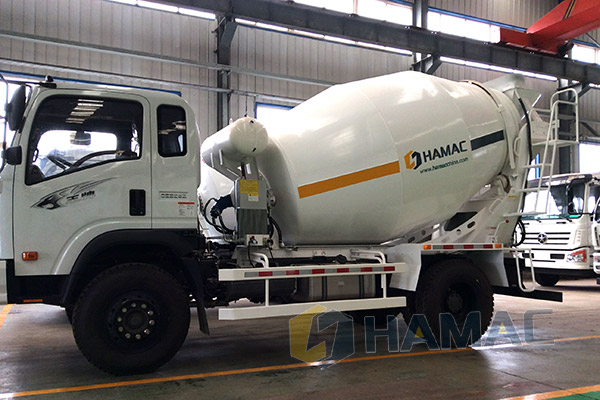

6cbm Concrete Mixing Truck is strong well designed equipment meant for transporting concrete / mortar from concrete batching plant directly to the place where it is to be poured, effectively delay concrete coagulations, avoid concrete stratification and eduction, and ensures construction quality and speed.
6cbm Concrete Mixing Truck has a wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed Concrete Works.
1. Principal components of the concrete mixer truck
(1) Hydraulic System: hydraulic pump, hydraulic motor.
(2) Drivetrain System: reductor.
(3) Control System.
(4) Mixing System.
(5) cleaning system.
2. Advantages of concrete mixer truck
(1) High-intensity drum material.
(2) featuring better wear-resistance and long service life.
(3) Germany IFM sensors
(4) low material residue.
(5) High-quality parts.
(6) Excellent performance and convenient operation.
(7) Imported original hydraulic system(Bosch Rexroth Brand).
(8) PMP or CF reducer
6m3 CONCRETE MIXER TRUCK STANDARD PARAMETER
|Mixing Drum parameter|
|Mixing drum||High quality wear-resistance steel|
|Drum body thickness: 5mm, End cover thickness:6mm|
|Agitating capacity||6 m3|
|Drum overall dimension(with frame)||4909*2208*2439mm|
|Mixing drum size||Diameter: Φ2112mm Length: 3612mm|
|Water supply||Sistema de suministro de agua neumática|
|Water tank capacity||450L|
|Reduction gear||FUXIN Reducer,|
|Hydraulic pump||Sunny ,America brand|
|Hydraulic motor||Sunny ,America brand|
|Chassis Brand||SINO Truck WANGPAI (CDW)|
|Chassis model||4X2 CDW chassis|
|Driving type||Left hand drive(LHD)|
|Rated power (HP)||150HP (110kW)|
|Emission standard||National Standard V|
|Cab type||WP ( without air-conditioner )|
|Operating braking system||Double pneumatic braking circuit|
