QT9-15 Block Making Plant

QT9-15 Block Making Plant

INTRODUCTION

Till now, our automatic block making machine is available with QT4-15B series, QT4-15C series, QT6-15 series, QT6-15B series, QT8-15 series, and QT10-15 series. It has been certified by CE, SGS, TUV, and the like. Our machine has been approved by Bureau Veritas, TUV CERT.

inquiry! Leave a Message!

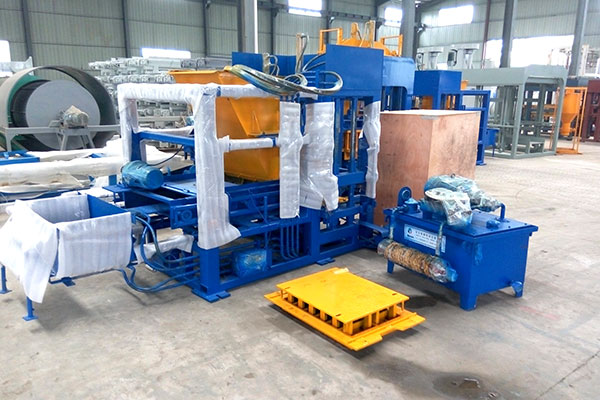

Detailed Photos

Specification

1. QT9-15 Hydraulic block making machine theoretical data:

Forming machine main theoretical data
Dimension of host machine 2900×2600×2900mm control style PLC
forming style Hydraulic Vibration force 80KN
vibrator style table and mould vibrate togather raw material feeding style 360 degree revole
forming hight 40-250mm moulding period 15-20S
moulding aera 1280×600mm size of pallet 1350×780×25mm
weight of host machine 13.5T Mixer style JS750
General water Consumption 10T/day Voltage 220/240/380/440V
Simple block machine line area needed
Workshop 200m2
Office 100m2
Total area About 2000m2
Worker arrangement
operate 1 Material loader 1
Drive forklift 1 Feeding pallets 1
Maintain 1 Total 5

2. QT9-15 Hydraulic block making machine Production capacity:

Production capacity
Size(L x W x H) Pcs /Mould Pcs / Hr
400X100X200 18 2700-4320
400X150X200 15 2250-3600
400X200X200 9 1350-2160
400X250X200 6 900-1440



3. How does Automatic Block Making Machine work?

1. Screw Conveyer (Optional fitment): loading bins of the instrument for transporting Fly Ash from the silos(optional fitting) or cement hopper (optional fitting) to the Batching Plant.

2. Batching Plant: It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.

3. Conveyer Belt: When the Batching plant's weighing bin trips according to the PLC control, the material comes to this conveyer belt. Then conveyer belt carried materials to the Mixture Machine.

4. Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. Mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mixer automatically, as per requirement.

5. Block mold machine: This is key of the production line. It can press the mixed material. So it can make various hollow block, solid brick, paver brick and kerbstone.

6. Stacker: Stacker is used to lay the block automatically, which is high-efficient and labor saving.

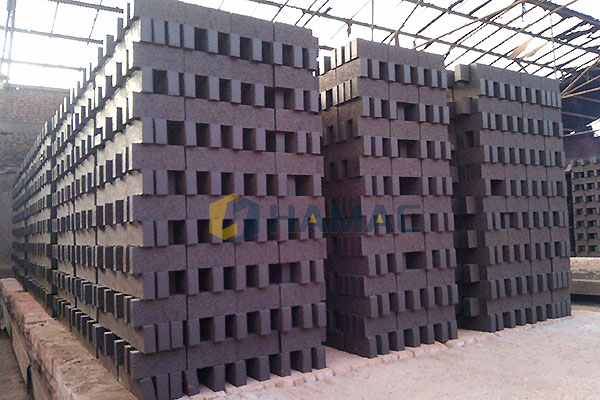

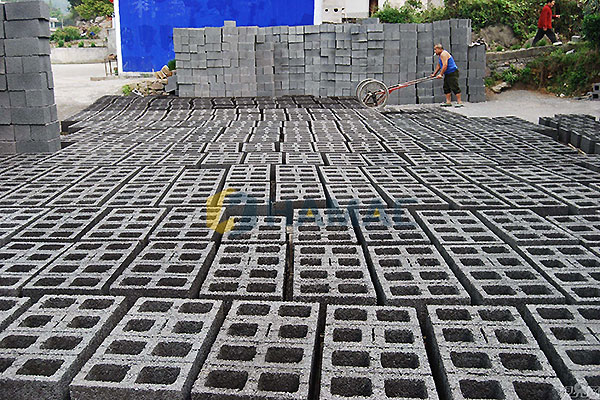

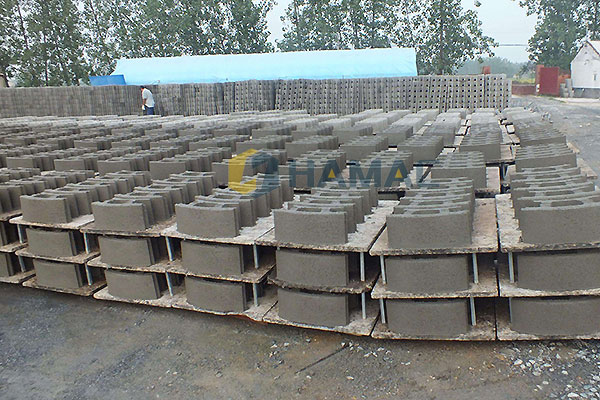

4. Block and Brick Models:
